IMPEDANCE ANALYZER for Water Electrolysis Cell ALDAS-E (EIS measuring instruments)

IMPEDANCE ANALYZER
for Water Electrolysis Cell

ALDAS-E

What is ALDAS-E?


HIOKI offers ALDAS-E, a revolutionary measurement solution for evaluating water electrolyzers.

The ALDAS method enables impedance measurement of cells and stacks and logging of changes in impedance values during active conditions when a water electrolyzer operates at high currents.

What is the ALDAS method


The ALDAS method is a measurement method that applies HIOKI’s specialized impedance measurement technology used in AC-IR measurement of lithium-ion batteries and high-precision current measurement technology required in the evaluation of power electronics such as inverters.

The ALDAS system’s wide voltage and current measurement range and high noise immunity make it helpful in evaluating cells operating with wide current and voltage ranges. Hence, ALDAS is useful to assess cell characteristics, monitor the condition of fuel cells in operation, and diagnose cell degradation under actual load conditions for large-scale hydrogen production, FCVs, HDVs, and other fuel cells.

What ALDAS-E offers you…



1. Characterization of materials for bigger-capacity Electrolysis cells

2. Comparison between platinum Loading and impedance, regarding MEA

3. Long-term membrane degradation evaluations during water electrolyzer is in operation

Case

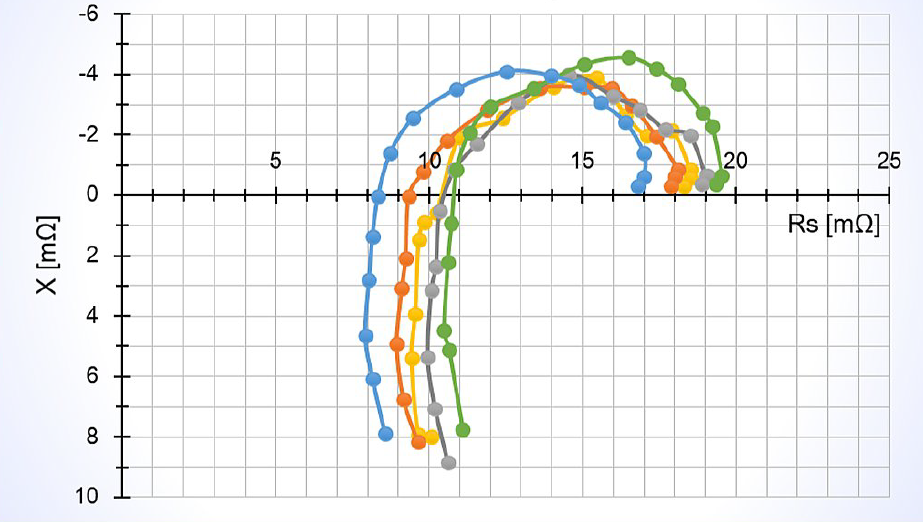

Nyquist-plot(Cole-Cole plot)

ALDAS-E is Impedance Analyzer for Water Electrolysis Cell.
ALDAS-E can impedance measurement of operating EC Stack.
We provide our hydrogen customers with accurate Nyqist-plot data.

[Words] EIS water electrolyzer 水電解 インピーダンス インピーダンスアナライザ
Electrolysis Cell eis iridium Platinum

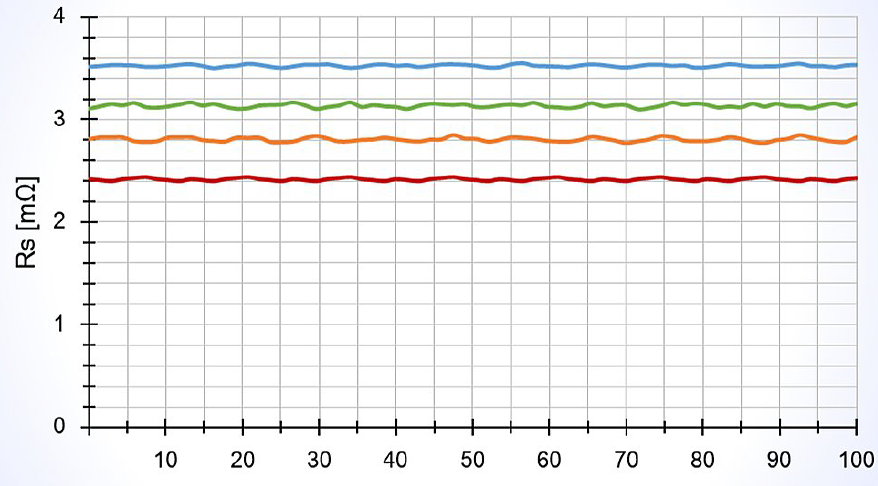

Logging plot : Real(Z) 1kHz

Click here for detailed EIS data

Block Diagram


ALDAS-E is Impedance Analyzer for Water Electrolysis Cell.
ALDAS-E can impedance measurement of operating EC Stack.
We provide our hydrogen customers with accurate Nyqist-plot data.

[Words] EIS water electrolyzer 水電解 インピーダンス pem aem soec fuelcell pefc sofc
Electrolysis Cell eis iridium Platinum

Specifications


Specifications Details
Maximum input Total voltage 20V or 80V or 150V *
Maximum input current 20A or 200A or 2000A *
Frequency 10mHz to 10kHz **
Measurement Channels 6ch or 12ch or 24ch *
* configuration dependent
** frequency extension on request
Functions
Measurement during electrolysis available
Simultaneous multi-channel measurement available
Simultaneous stack and cell measurement available
Special orders
To increase the maximum input value of
voltage and current
customizable
e.g. Max input current 5000A etc…
