Product introduction: POWER ANALYZER PW8001

> ENGLISH > JAPANESE   > TOP PAGE

Automatic sensor identification and
phase compensation for more accurate and
error-free measurements

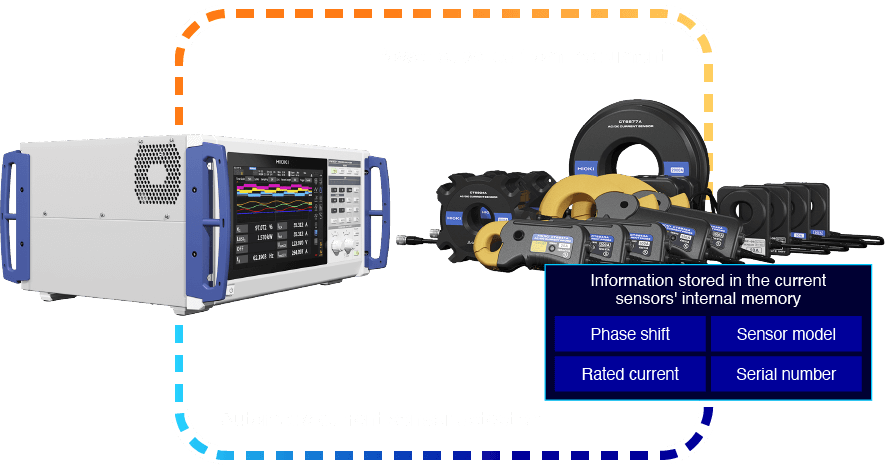

The PW8001 can automatically acquire information about connected sensors and
perform phase correction. This capability significantly reduces time spent on
pre-measurement configuration and provides robust support for accurate,
error-free power measurement.

A current sensor that is compatible with the automatic recognition function is required.
 View more

Example of the automatic phase correction for
the CT6904A AC/DC current sensor

Key features

From R&D to shipping inspections – combine the input units that suit your application

Capture the slightest power loss with a wideband power measurement of world-class accuracy

Reliable reproduction of input waveforms with 15 MHz sampling and 18-bit resolution

Multi-circuit measurement of up to 8 channels of power data with a single instrument

Automatic sensor identification and phase compensation for more accurate and error-free measurements

Simultaneously analyze 4 motors with a single instrument

Link two PW8001 units to double the number of channels via optical link

CAN or CAN FD output enables to integrate measurement data into existing CAN networks

Extensive lineup of accurate current sensors enables applications from HILS development to equipment evaluation
