Product introduction: POWER ANALYZER PW8001

> ENGLISH > JAPANESE   > TOP PAGE

From R&D to shipping inspections
– combine the input units that suit your application

For research evaluation and shipping inspections of solar inverters
1500 V CAT II measurement

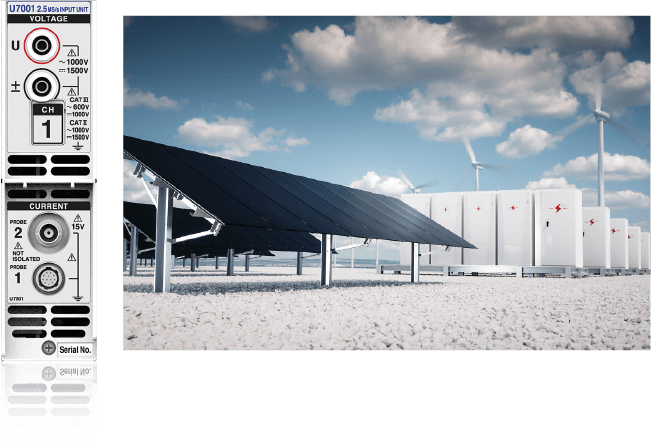

2.5 MS/s INPUT UNIT U7001

Basic accuracy for
50/60 Hz Power
± 0.07%
Sampling frequency2.5 MHz
ADC resolution16-bit
Number of channelsMax. 8 ch
Measurement
frequency band
DC, 0.1 Hz to 1 MHz
Maximum input voltageAC1000 V, DC1500 V
Maximum rated
line-to-ground voltage
AC 600 V/DC 1000 V
CAT III
AC 1000 V/DC 1500 V

CAT II

High-accuracy measurement of SiC/GaN inverter efficiency and reactor/transformer loss
Basic accuracy: ±0.03%
Accuracy for DC Power: ±0.05%

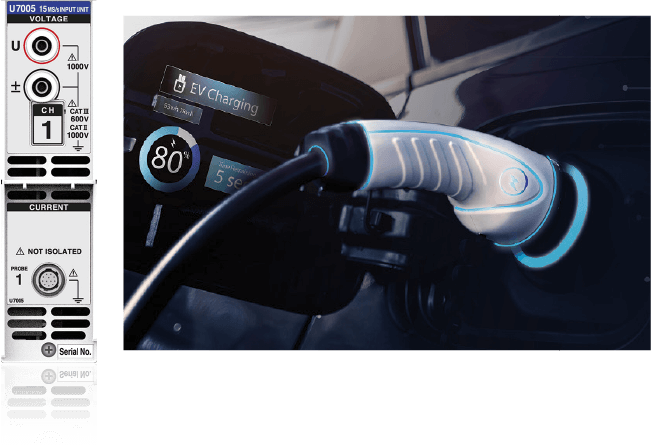

15 MS/s INPUT UNIT U7005

Basic accuracy for
50/60 Hz Power
± 0.03%
Sampling frequency15 MHz
ADC resolution18-bit
Number of channelsMax. 8 ch
Measurement
frequency band
DC, 0.1 Hz to 5 MHz
Maximum input voltageAC1000 V, DC1000 V
Maximum rated
line-to-ground voltage

600 V CAT III
1000 V CAT II



U7005 (Release in 2022)

> High-performance current sensor  > Optical link  >CAN/CAN-FD  > Analyze four motors simultaneously

Key features

From R&D to shipping inspections – combine the input units that suit your application

Capture the slightest power loss with a wideband power measurement of world-class accuracy

Reliable reproduction of input waveforms with 15 MHz sampling and 18-bit resolution

Multi-circuit measurement of up to 8 channels of power data with a single instrument

Automatic sensor identification and phase compensation for more accurate and error-free measurements

Simultaneously analyze 4 motors with a single instrument

Link two PW8001 units to double the number of channels via optical link

CAN or CAN FD output enables to integrate measurement data into existing CAN networks

Extensive lineup of accurate current sensors enables applications from HILS development to equipment evaluation
