World's First CAT Ⅲ 2000 V , DC HIGH VOLTAGE PROBE P2000

Safe Inspection of Solar Installations with High Voltage

Solar installations (also known as photovoltaic or PV installations) are becoming increasingly high-voltage
in order to reduce costs and improve the efficiency of power generation systems.

As a result, it is important to select measuring instruments
that support higher voltage measurement to protect the safety of inspection workers.

The P2000 enables high voltage measurement up to CAT Ⅲ 2000 V
by simply connecting to a compatible Hioki clamp meter or digital multimeter.

Why is CAT III 2000 V capability necessary?

Recent years have seen the introduction of solar power systems and EV batteries that operate at progressively higher voltages, creating new maintenance demand. At the same time, the hazards posted by maintenance work are increasing due to use of higher voltages.

Safety standards categorize measurement locations by measurement category ratings CAT II, CAT III, and CAT IV based on their line-to-ground rated voltage, current capacity, and transient overvoltage. As part of a transition to a new standard (IEC61010-2-030:2017) in 2017, measurements of solar installations were classified as CAT III.

Against this backdrop, measuring instruments used in maintenance of solar installations must accommodate high voltages to ensure they can be used safely. Using instruments that can accommodate the appropriate measurement category serves to protect workers and equipment from serious accidents such as electric shock and burnout.

Currently, adoption of 1500 V solar installation is growing, but instruments that can accommodate even higher voltages will be necessary in the future as larger and even more efficient systems enter into use.

Hioki developed the P2000 to support CAT III 2000 V measurement in response to the near-term prospect of such applications.

P2000 Compatible Models

DIGITAL MULTIMETER DT4261

DIGITAL MULTIMETER
DT4261

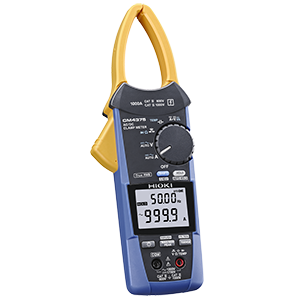

AC/DC CLAMP METER CM4375-50

AC/DC CLAMP METER
CM4375-50

To Be Released In December 2021

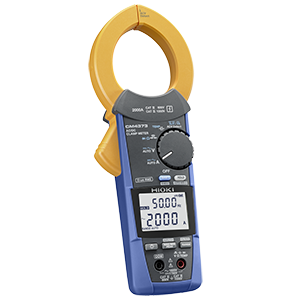

AC/DC CLAMP METER CM4373-50

AC/DC CLAMP METER
CM4373-50

To Be Released In December 2021

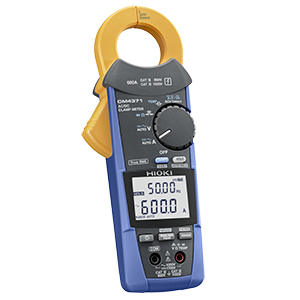

AC/DC CLAMP METER CM4371-50

AC/DC CLAMP METER
CM4371-50

To Be Released In December 2021

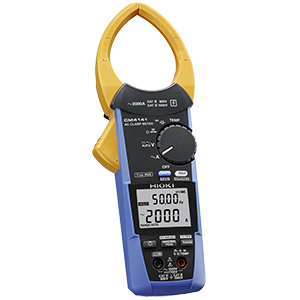

AC CLAMP METER CM4141-50

AC CLAMP METER
CM4141-50

To Be Released In December 2021

P2000 Specifications

Maximum input voltage
(max. rated voltage between INPUT H-INPUT L)
DC 2000 V
Maximum rated voltage to earth2000 V (Measurement Category III) anticipated transient overvoltage 15,000 V
1000 V (Measurement Category IV) anticipated transient overvoltage 12,000 V
Input resistance20 MΩ ±5.0% (between INPUT H – INPUT L, with OUTPUT terminal open)
Output ratioDepends on the input impedance of the connected device (example: 1/10 when a device with an input impedance of 10 MΩ is connected)
Overload protectionDC/AC 2200 V 1 minutes (between INPUT H – INPUTO L)
DC/AC 600 V 1 minutes (between OUTPUT H – OUTPUT L)
OUTPUT terminal4 mm banana terminal
Operating environmentIndoor use, pollution degree 2, altitude up to 2000 m
Operating temperature and humidity rangeTemperature: -25°C to 65°C (-13.0°F to 149.0°F)
Humidity: −25°C to 40°C (−13.0°F to 104.0°F): 80% RH or less (non-condensing)
40°C to 65°C (104.0°F to 149.0°F): Linearly reduces from 80% RH or less at 40°C (104.0°F) to 25% RH or less at 65°C (149.0°F) (non-condensing).
Storage temperature and humidity range-30°C to 70°C (-22°F to 158°F) 90% RH or less (non-condensing)
Applicable standardsEN 61010
Product warranty period3 years (probe body and cable part are not covered by warranty)
AccessoriesConnection Cable Set L4943, Strap with buckle, Carrying Case C0205, Instruction Manual, Operating Precautions

Accuracy in combination with the DT4261 or Clamp Meter series

ModelsCombination Accuracy Specifications
DT4261Range 600.0 V, ±0.5% rdg ±0.2 V
Range 2000 V, ±0.5% rdg ±5 V
CM4375-50Range 600.0 V, ±1.0% rdg ±0.3 V
Range 2000 V, ±1.0% rdg ±3 V
CM4373-50
CM4371-50
CM4141-50
